TBNA-Aspiration Needles

Description

Transbronchial aspiration needles by ENDO-FLEX consist of a distal stainless steel needle with a side opening, which is connected proximally to a Luer-Lock connector. The connector is movable and is connected to the proximal handle located on the outer tube, which is meant to extend the distal needle out of the outer tube in the distal direction for needle stabilization during treatment. Variants with outer tubes in plastic or stainless steel available. The instrument also comes with a suitable syringe including a 2-way stopcock.

  • outer tube diameters: 1.8 mm and 2.3 mm
  • stainless steel needles: length (12 mm and 15 mm) and diameter (0.7 mm to 0.9 mm)

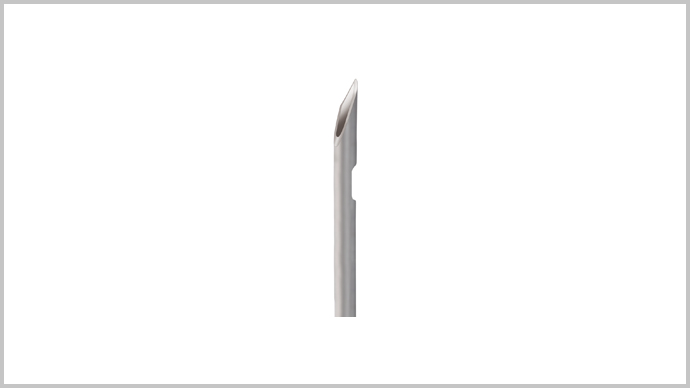

  • distal stainless steel needle with side opening
  • plastic or metal tube
  • various tube diameters for working channels starting from 2.0 mm
  • working length: 120 cm
  • plastic tube design with Luer-Lock connection to secure the needle
  • metal tube design with a snap-in mechanism to secure the needle

Product Images and Videos

Customer Service
Any Questions about the product? +49 281 94400-0 vertrieb (at) endo-flex.de

More Information

Transbronchial Aspiration Needle

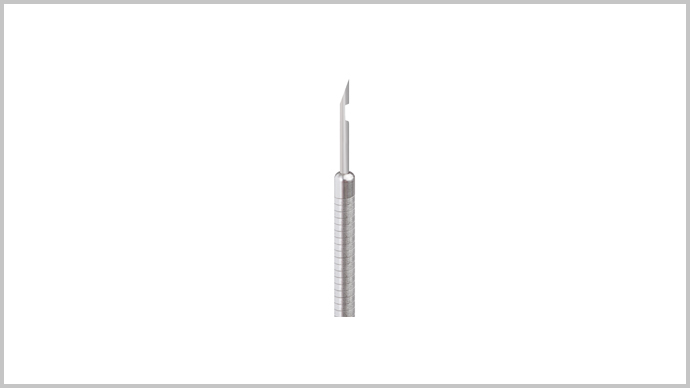

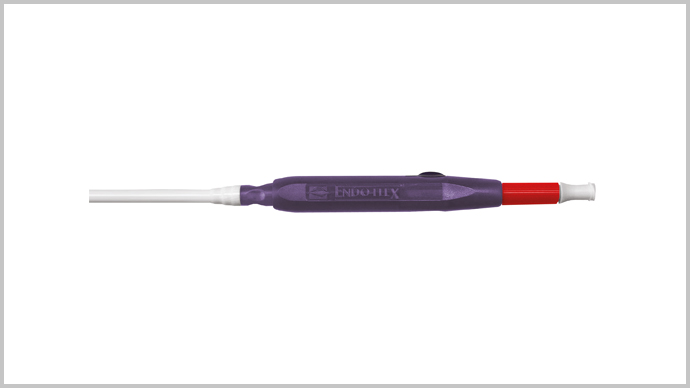

Working length 120 cm; needle with lateral opening; incl. needle safety device; metal tube with snap-in mechanism

Catalogue No. Description Needle Diameter
(mm / Gauge)
Sheath Outer Diameter (mm) Needle Length (mm) Min. Accessory Channel (mm)
MEB2618-A12 TBNA Needle in Metal Tube 0.8/21 1.9 12 2.2
MEB2618-A15 TBNA Needle in Metal Tube 0.8/21 1.9 15 2.2



Transbronchial Aspiration Needle

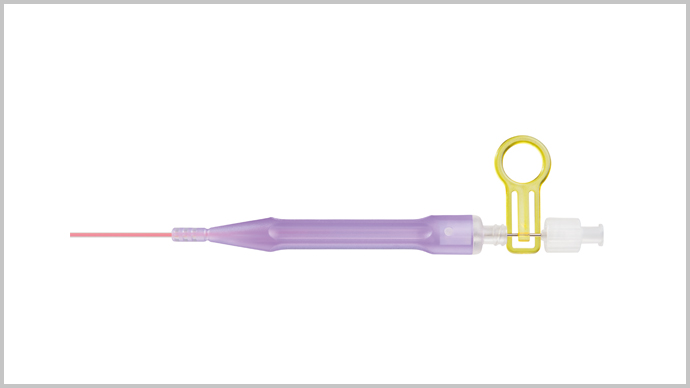

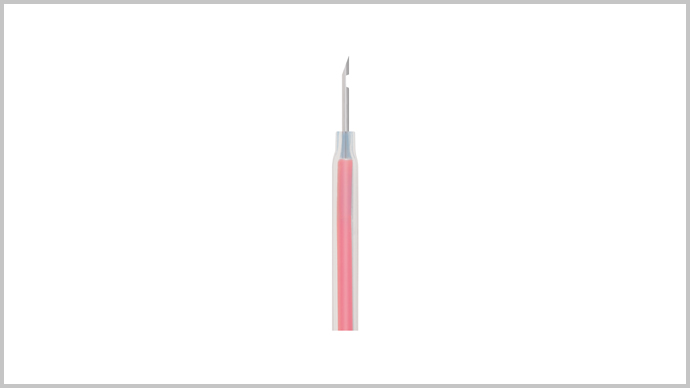

Working length 120 cm; needle with lateral opening with snap-in mechanism

Catalogue No. Description Needle Diameter
(mm / Gauge)
Sheath Outer Diameter (mm) Needle Length (mm) Min. Accessory Channel (mm)
EB2519-A15 TBNA Needle in Teflon Tube 0.7/22 1.9 15 2,2
EB2618-A12 TBNA Needle in Teflon Tube 0.9/20 1.8 12 2,0
EB2622-A15 TBNA Needle in Teflon Tube 0.9/20 2.3 15 2,8

Instructions for Use - Transbronchial Aspiration Needles SU

File size: 991 KB
Type: PDF

Leaflet Transbronchial Needle Aspiration System - Single Use

File size: 175 KB
Type: PDF
