Description

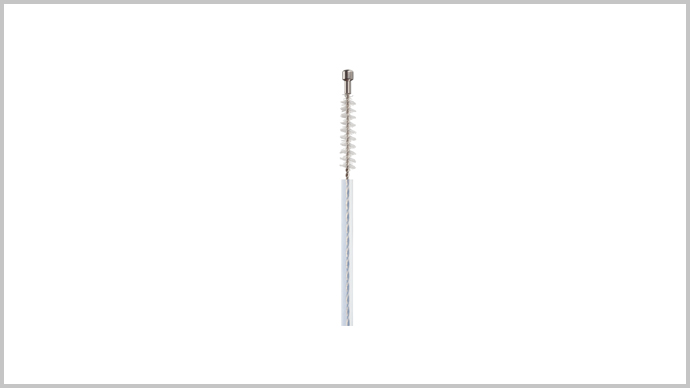

ENDO-FLEX - cytology brushes for endoscopic removal of cell smears. The metal head at the end of the brush locks the sample when withdrawn and prevents sample loss or contamination.
- 1 and 2 lumen designs:
- 2-lumen version for use with guide wire for working channels from 3.2 mm Ø
- 1-lumen version with a metal head acting as a closure for working channels from 2.0 mm Ø
- lengths: between 120 cm and 230 cm
- brush with a conical, atraumatic tip
Product Images and Videos
Customer Service
More Information

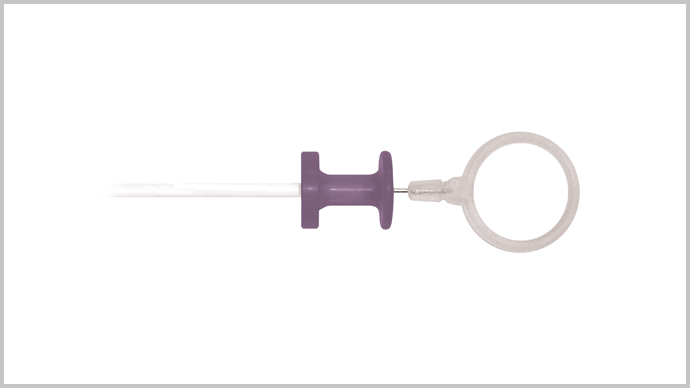

Cytology Brush – Single Lumen
| Catalogue No. | Working Length (cm) | Sheath Outer Diameter (mm) | Min. Accessory Channel (mm) |
|---|---|---|---|
| E4218-A | 120 | 1.8 | 2.0 |
| E4218-C | 180 | 1.8 | 2.0 |
| E4219-G | 230 | 1.9 | 2.2 |
| E4222-G | 230 | 2.3 | 2.8 |
Cytology Brush – Single Lumen
| Catalogue No. | Working Length (cm) | Sheath Outer Diameter (mm) | Min. Accessory Channel (mm) |
|---|---|---|---|
| NE4218-A | 120 | 1.8 | 2.0 |
| NE4218-C | 180 | 1.8 | 2.0 |
| NE4222-G | 230 | 2.3 | 2.8 |

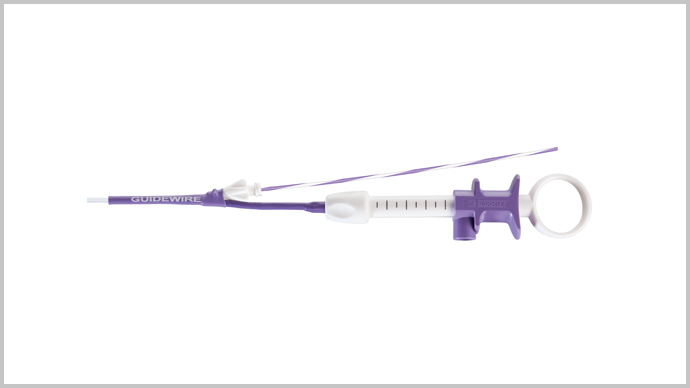

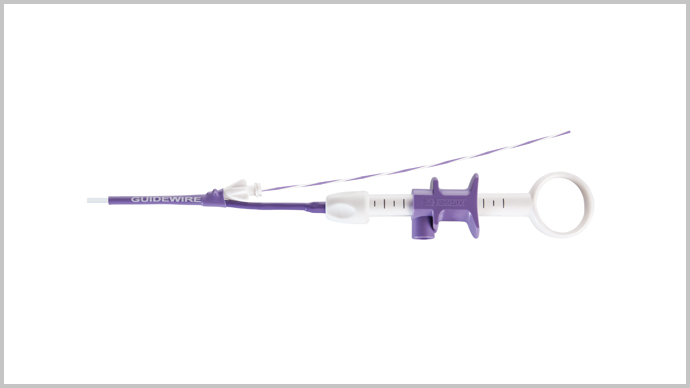

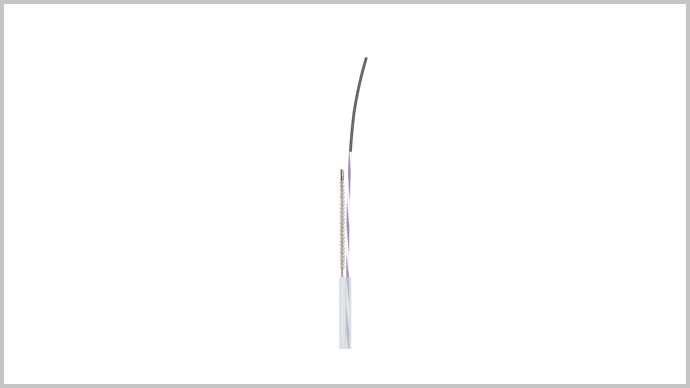

Cytology Brush – Double Lumen
Compatible with guide wire .035”
| Catalogue No. | Working Length (cm) | Sheath Outer Diameter (mm) | Min. Accessory Channel (mm) |
|---|---|---|---|
| E4222DL-C | 180 | 2.7 | 3.2 |
