Single-Stage Dilation Balloons

Description

ENDO-FLEX dilation balloons come with a transparent plastic balloon that offers a uniform diameter with maximum radial force. Both the biliary and the achalasia variants can be easily positioned using a guide wire. X-ray markings supported the exact placement.

  • biliary dilation balloons for placement through the scope (TTS)
  • achalasia dilatation balloons for placement over the guide wire (OTW)
  • compatible with 0.035 "guide wires
  • balloon diameters from 4mm to 12mm (biliary) and 30mm to 40mm (achalasia)
  • biliary dilatation balloons in working length 200 cm and 300 cm

Product Images and Videos

Customer Service
Any Questions about the product? +49 281 94400-0 vertrieb (at) endo-flex.de

More Information

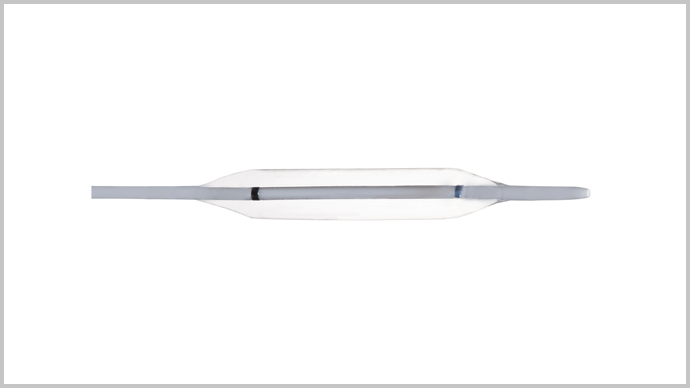

Biliary Single Size

Total length 200 cm, radiopaque markers, compatible with guide wire .035”

Catalogue No. Balloon Diameter (mm) Balloon Length (mm) Catheter Outer Diameter (French) Max. Pressure (psi/atm) Min. Accessory Channel (mm)
3410420 4 20 7 115/8 2.8
3410620 6 20 7 115/8 2.8
3410830 8 30 7 115/8 2.8
3411030 10 30 7 70/5 2.8
3411230 12 30 7 70/5 2.8



Biliary Single Sizer

Total length 300 cm, radiopaque markers, compatible with guide wire .035”

Catalogue No. Balloon Diameter (mm) Balloon Length (mm) Catheter Outer Diameter (French) Max. Pressure (psi/atm) Min. Accessory Channel (mm)
3410420-300 4 20 7 115/8 2.8
3410620-300 6 20 7 115/8 2.8
3410830-300 8 30 7 115/8 2.8

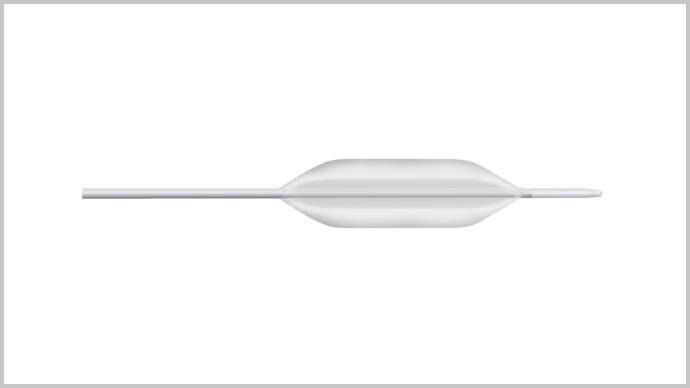

Achalasia Single Size

Total length 100 cm, compatible with guide wire .035”

Catalogue No. Balloon Diameter (mm) Balloon Length (mm) Catheter Outer Diameter (French) Max. Pressure (psi/atm) Min. Accessory Channel (mm)
3413080 30 80 14 25/1.8 n.a.
3413580 35 80 14 25/1.8 n.a.
3414080 40 80 14 25/1.8 n.a.
