Description
The multi-stage dilation balloons have a clear, transparent plastic balloon, which offers a uniform diameter with maximum radial force. Each balloon can gradually reach three different diameters.
Both variants can be easily positioned through the endoscope using a guide wire. X-ray markings supported the exact placement.
Easy placement through the endoscope (TTS)
- compatible with .035" guide wires
- balloon diameters from 6 mm to 15 mm (biliary) and 6 mm to 20 mm for esophageal variants
Product Images and Videos
Customer Service
More Information

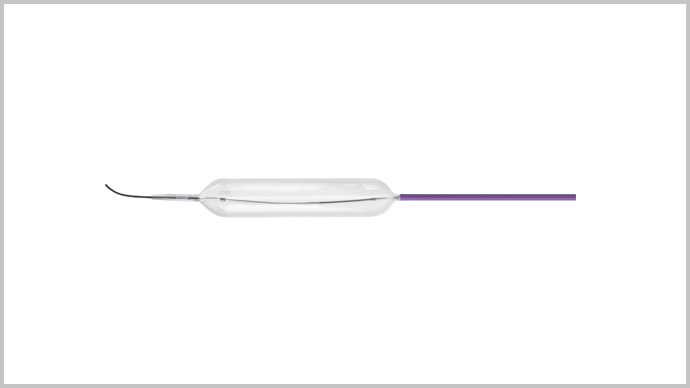

Esophageal Dilation Balloon
Pre-loaded hydrophilic guide wire .035“, with radiopaque markers, 3 progressive stages, total length 230 cm
Catalogue No. | Balloon Diameter (mm) | Balloon Length (mm) | Catheter Outer Diameter (French) | Max. Pressure (psi/atm) | Min. Accessory Channel (mm) |
---|---|---|---|---|---|
34106PRO | 6–7–8 | 55 | 7 | 145/10 | 2.8 |
34108PRO | 8–9–10 | 55 | 7 | 130/9 | 2.8 |
34110PRO | 10–11–12 | 55 | 7 | 115/8 | 2.8 |
34112PRO | 12–13.5–15 | 55 | 7 | 115/8 | 2.8 |
34115PRO | 15–16.5–18 | 55 | 7 | 100/7 | 2.8 |
34118PRO | 18–19–20 | 55 | 7 | 145/10 | 2.8 |

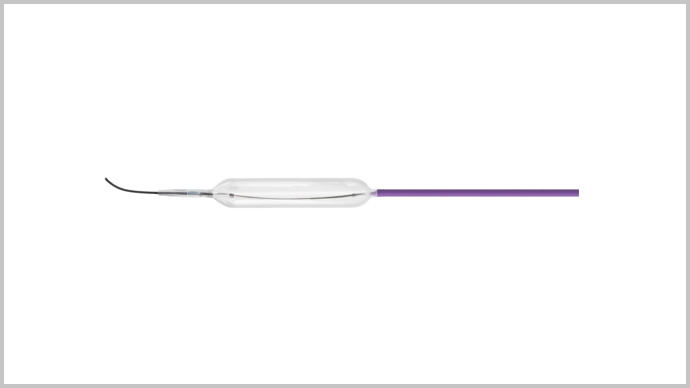

Biliary Dilation Balloon
Pre-loaded hydrophilic guide wire .035”, with radiopaque markers, 3 progressive stages, total length 200 cm
Catalogue No. | Balloon Diameter (mm) | Balloon Length (mm) | Catheter Outer Diameter (French) | Max. Pressure (psi/atm) | Min. Accessory Channel (mm) |
---|---|---|---|---|---|
3410630PRO | 6–7–8 | 30 | 7 | 145/10 | 2.8 |
3410830PRO | 8–9–10 | 30 | 7 | 130/9 | 2.8 |
3411030PRO | 10–11–12 | 30 | 7 | 115/8 | 2.8 |
3411230PRO | 12–13.5–15 | 30 | 7 | 115/8 | 2.8 |
![](/fileadmin/_processed_/2/0/csm_GA-0192_Multi-Stage-Dilation_Balloons_SU_EN_V10_034429fb04.png)
Instructions for Use - Progressive Dilation Balloons SU
File size:
1 MB
Type:
PDF
![](/fileadmin/_processed_/f/2/csm_LEF-GDB-SU-01-EN__LL-0335_Vers._2.0__102020__Multi_Stage_Dilation_Balloons_3ea1a26830.png)
Leaflet Multi-Stage Dilation Balloons - Single Use
File size:
211 KB
Type:
PDF
