Description
- probe (total length 250 cm - available in 3 shapes)

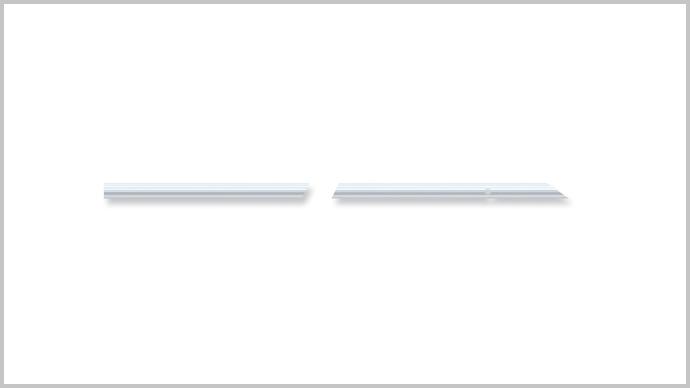

- nasal tube

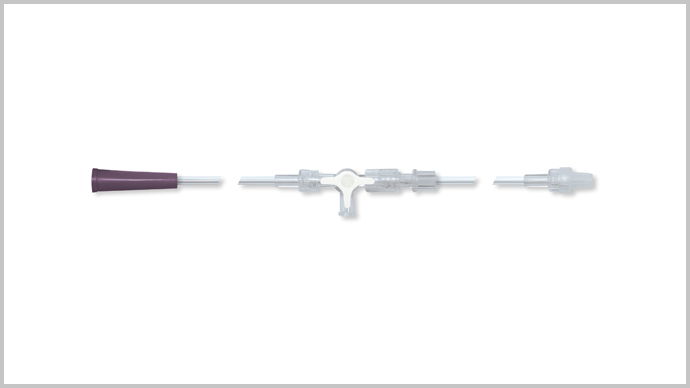

- drainage connection hose,

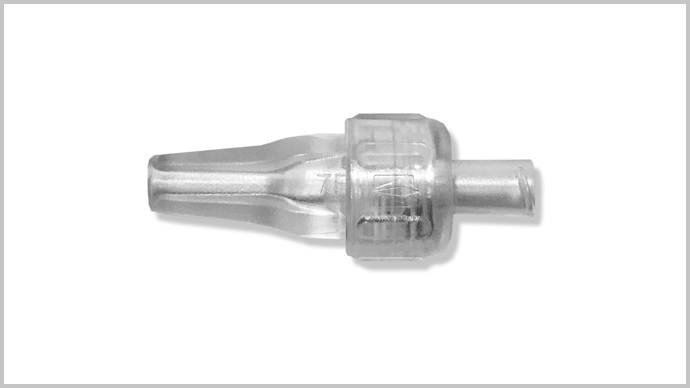

- luer-Lock connector
Product Images and Videos
Customer Service
More Information
Nasal Biliary Drainages - Single Use
Radiopaque probe with position marking (probe length 250 cm); nasal catheter (length 50 cm); drainage connection tube with stop-cock and Luer-Lock connector
| Catalogue No. | Catheter Shape | Probe Size (French) | Drainage Connection Tube Length (cm) | Compatible Guide Wire (inch) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|
| 206185 | Classic | 5 | 135 | .035 | 2.0 |
| 206225 | Classic | 7 | 135 | .035 | 2.8 |

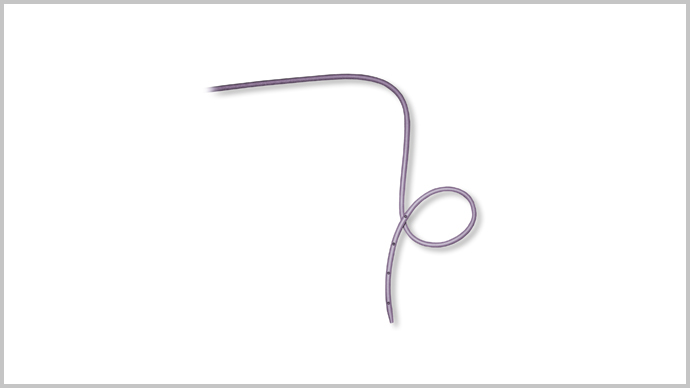

| 206305 | Classic | 10 | 135 | .047 | 3.7 |
| 207185 | Classic + Pigtail | 5 | 135 | .035 | 2.0 |
| 207225 | Classic + Pigtail | 7 | 135 | .035 | 2.8 |

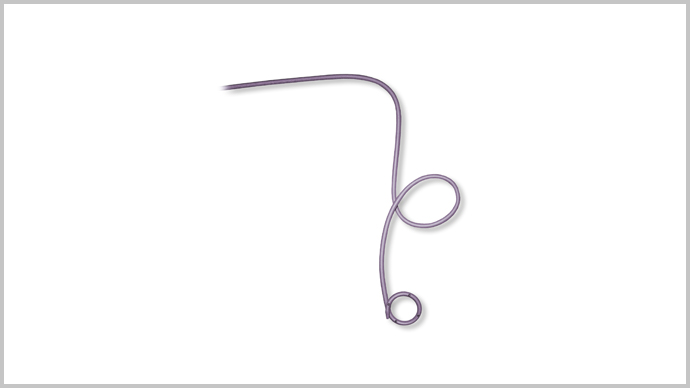

| 207305 | Classic + Pigtail | 10 | 135 | .047 | 3.7 |
| 208185 | Pigtail | 5 | 135 | .035 | 2.0 |
| 208225 | Pigtail | 7 | 135 | .035 | 2.8 |

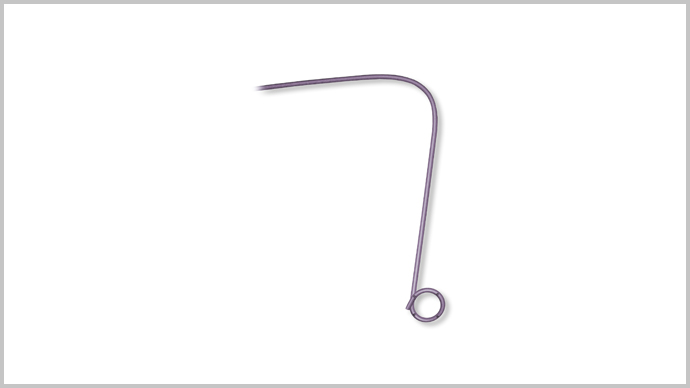

| 208305 | Pigtail | 10 | 135 | .047 | 3.7 |
Instructions for Use - Nasal Biliary Drainage Sets SU
File size:
1 MB
Type:
PDF
Leaflet Nasal Biliary Drainages - Single Use
File size:
197 KB
Type:
PDF
