Description

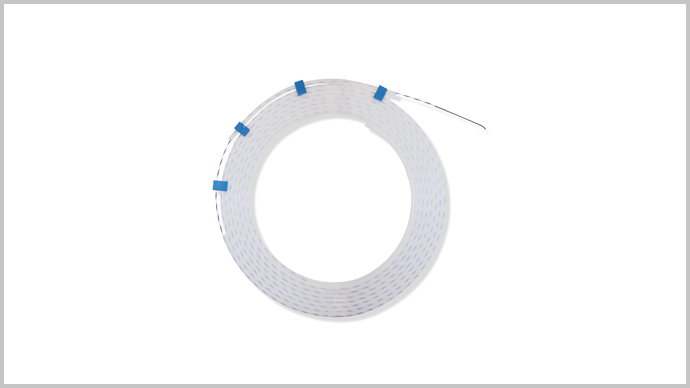

ENDO-FLEX guide wires are made of Nitinol and are equipped with a flexible to highly flexible plastic tip (straight or curved) and a colored plastic coating (violet-white and violet-yellow).
- convenient sliding properties
- hydrophilic coating
- diameter .025" and .035"
- available lengths: between 300 cm and 600 cm.
Product Images and Videos
Customer Service
More Information
5 cm hydrophilic tip
| Catalogue No. | Description | Diameter (inch/mm) | Length (cm) | Flexible Part (cm) | Colour |
|---|---|---|---|---|---|
| 21725450 | High Flexible Straight Tip | .025 / 0.64 | 450 | 5 | Violet / Yellow |

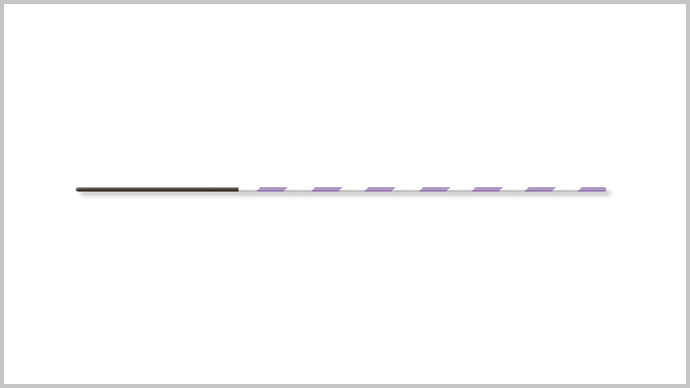

| 21735450 | High Flexible Straight Tip | .035 / 0.89 | 450 | 5 | Violet / Yellow |
| 21735600 | High Flexible Straight Tip | .035 / 0.89 | 600 | 5 | Violet / Yellow |
| Catalogue No. | Description | Diameter (inch/mm) | Length (cm) | Flexible Part (cm) | Colour |
|---|---|---|---|---|---|

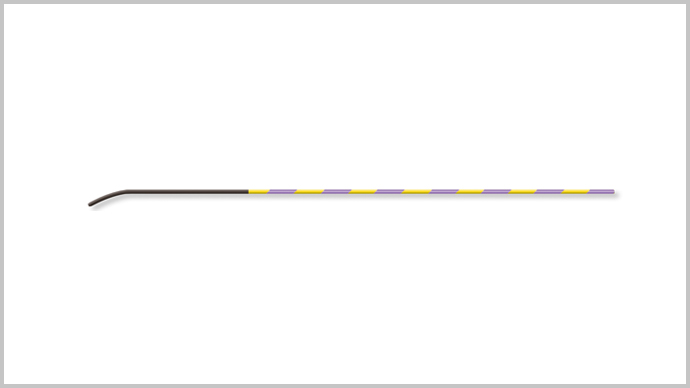

| 21825450 | High Flexible Curved Tip | .025 / 0.64 | 450 | 5 | Violet / Yellow |

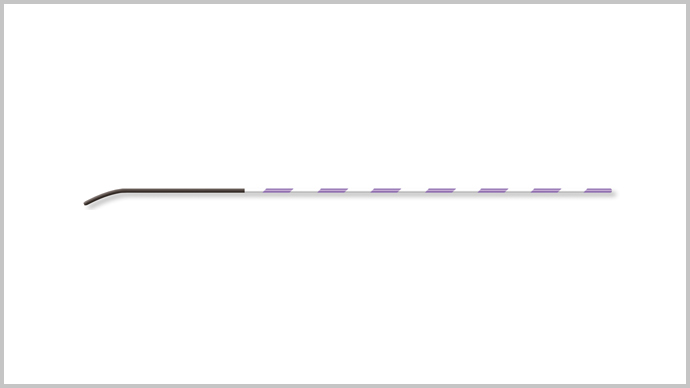

| 21835450 | High Flexible Curved Tip | .035 / 0.89 | 450 | 5 | Violet / White |
50 cm hydrophilic coating
| Catalogue No. | Description | Diameter (inch/mm) | Length (cm) | Flexible Part (cm) | Colour |
|---|---|---|---|---|---|
| 21635450 | Flexible Standard Tip | .035 / 0.89 | 450 | 5 | Violet / White |
Teflon-coated
| Catalogue No. | Description | Diameter (inch/mm) | Length (cm) | Flexible Part (cm) | Colour |
|---|---|---|---|---|---|
| 21025400 | Flexible Tip | .025 / 0.64 | 400 | 30 | Green |
| 21535400 | Flexible Tip | .035 / 0.89 | 300 | 30 | Green |

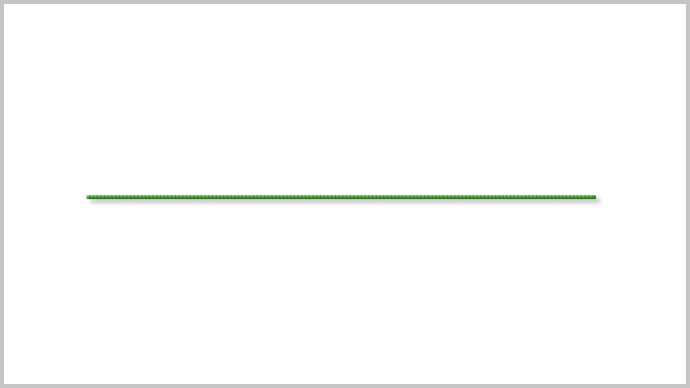

| 21035400 | Flexible Tip | .035 / 0.89 | 400 | 30 | Green |
| 21052400 | Flexible Tip | .052 / 1.32 | 400 | 30 | Green |
Instructions for Use - Nitinol Guide Wires hydrophilic coated Nitinol Guide Wires SU “Smart-Guide” and “Hi-Flex”
File size:
1,008 KB
Type:
PDF
Instructions for Use - Stainless Steel Guide Wires SU - Teflon coated
File size:
1 MB
Type:
PDF
