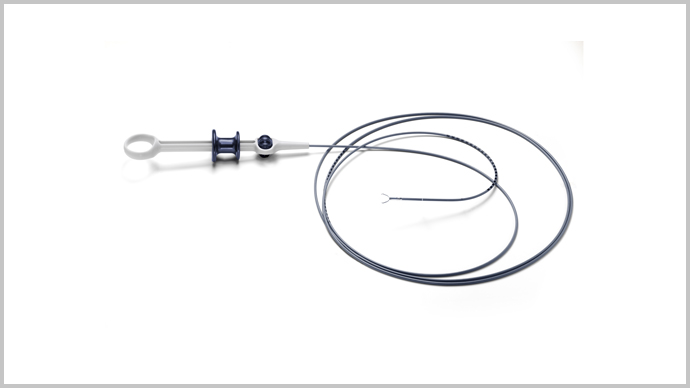

Hemostasis Clips

Description

  • clip device can be opened and closed more than ten times for correct placement
  • instant readiness in the event of emergency bleeding
  • rotatable - for easy orientation and positioning
  • clip opening from 9 to 16 mm, opening width 135°
  • one-hand operation facilitates effective and efficient repositioning of clips

Product Images and Videos

Customer Service
Any Questions about the product? +49 281 94400-0 vertrieb (at) endo-flex.de

More Information

Hemostasis Clip

Mark, Bleeding-stop, Suture solution

Catalogue No. Sales Unit Outer Ø Working Length Requested min. Channel Clip Opening Clip Length
ECS-09-26-165 Box of 10 2.6mm 165cm 2.8mm 9mm 12.7 mm
ECS-09-26-230 Box of 10 2.6mm 230 cm 2.8mm 9mm 12.7 mm
ECS-11-26-165 Box of 10 2.6mm 165cm 2.8mm 11mm 12.7 mm
ECS-11-26-230 Box of 10 2.6mm 230 cm 2.8mm 11mm 12.7 mm
ECS-12-26-165 Box of 10 2.6mm 165cm 2.8mm 12mm 12.7 mm
ECS-12-26-230 Box of 10 2.6mm 230 cm 2.8mm 12mm 12.7 mm
ECS-13-26-165 Box of 10 2.6mm 165cm 2.8mm 13mm 13.6mm
ECS-13-26-230 Box of 10 2.6mm 230 cm 2.8mm 13mm 13.6mm
ECS-16-26-165 Box of 10 2.6mm 165cm 2.8mm 16mm 13.6mm
ECS-16-26-230 Box of 10 2.6mm 230 cm 2.8mm 16mm 13.6mm

Leaflet Hemostasis Clip - Single Use

File size: 154 KB
Type: PDF
