Description
ENDO-FLEX offers fibrin needles in two versions:
- double-lumen standard needle:The components are brought together in a "mixing chamber" before they exit the needle
- double-lumen coaxial needle: The components connect for the first time in the tissue.
Color-coded Luer-Lock connectors are used for the targeted attachment of the fibrin components.
- lengths: of 160, 180 and 230cm.
- tube diameter: 2.6 mm
- color-coded Luer-Lock connectors
- transport protection against accidental extension of the needle before use
Product Images and Videos
Customer Service
More Information

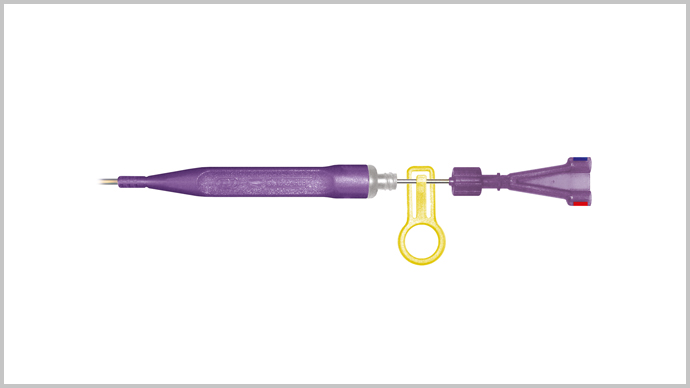

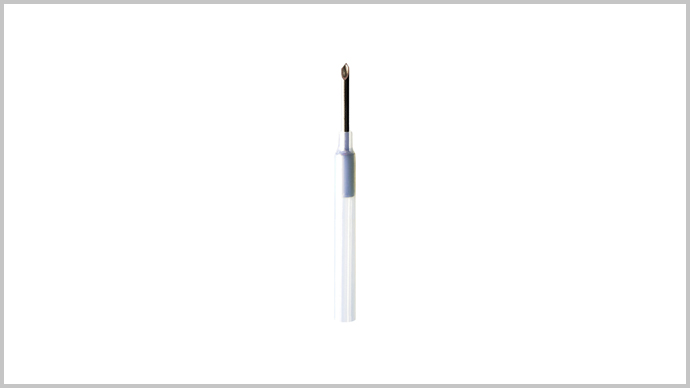

Fibrin Application Needle
Double lumen, single lumen needle; min. accessory channel 3.2mm; mixing of the adhesive components in the instrument
| Catalogue No. | Needle Diameter (mm) | Needle Length (mm) | Catheter Outer Diameter (mm) | Working Length (cm) |
|---|---|---|---|---|
| ET272620-B | 0.9 | 6 | 2.6 | 160 |
| ET272620-C | 0.9 | 6 | 2.6 | 180 |
| ET272620-G | 0.9 | 6 | 2.6 | 230 |
| ET272620-C4 | 0.9 | 4 | 2.6 | 180 |

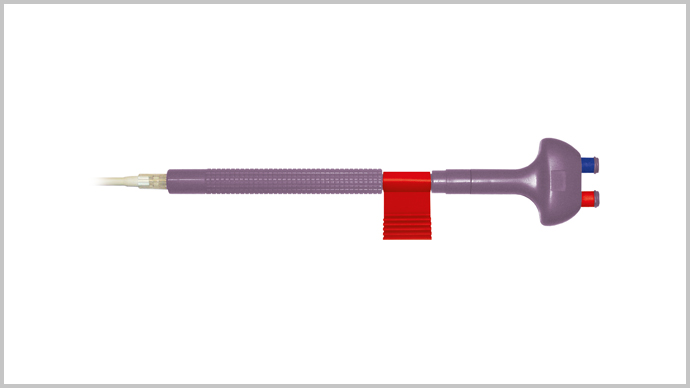

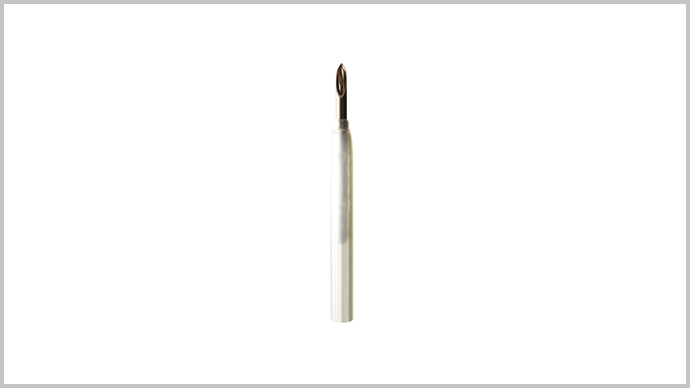

Fibrin Application Needle
Double lumen, coaxial needle; min. accessory channel 3.2mm; mixing of the adhesive components in the tissue
| Catalogue No. | Needle Diameter (mm) | Needle Length (mm) | Catheter Outer Diameter (mm) | Working Length (cm) |
|---|---|---|---|---|
| ET272630-B | 1.2 | 6 | 2.6 | 160 |
| ET272630-C | 1.2 | 6 | 2.6 | 180 |
| ET272630-G | 1.2 | 6 | 2.6 | 230 |
Instructions for Use - Fibrin Application Needles SU
File size:
1,018 KB
Type:
PDF
