Description
- distal stainless steel needle, plastic tube
- different needle lengths, diameters and working lengths
- various tube diameters for working channels from 2.0 mm
- handle with Luer-Lock connection to secure the needle
Product Images and Videos
Customer Service
More Information

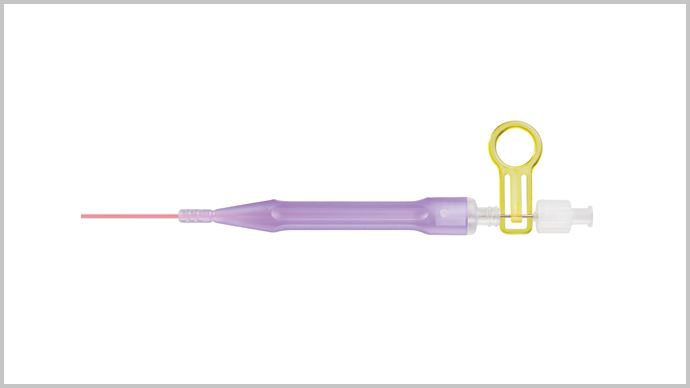

Injection Needle STANDARD-Series
Removable safety clip; Luer-Lock-mechanism
| Catalogue No. | Needle Diameter (mm / Gauge) | Needle Length (mm) | Sheath Outer Diameter (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|

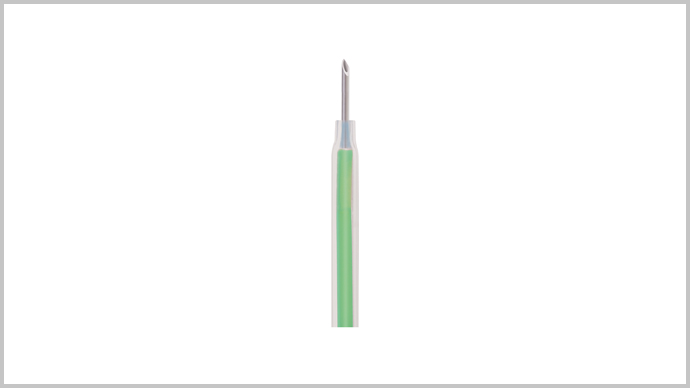

| ET2518-C4 | 0.6/23 | 4 | 1.8 | 180 | 2.0 |
| ET2518-C6 | 0.6/23 | 6 | 1.8 | 180 | 2.0 |
| ET2518-G4 | 0.6/23 | 4 | 1.8 | 230 | 2.0 |

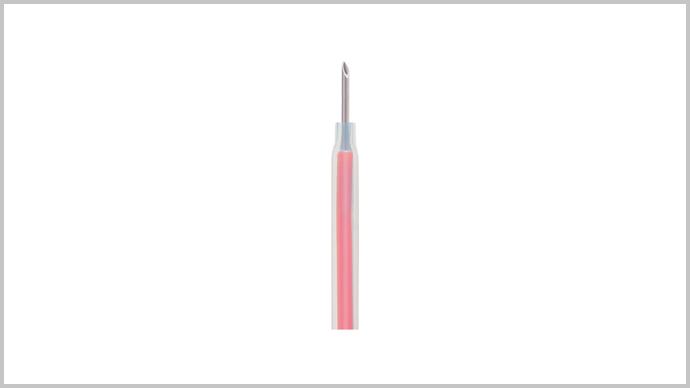

| ET2522-B4 | 0.7/22 | 4 | 2.3 | 160 | 2.8 |
| ET2522-B6 | 0.7/22 | 6 | 2.3 | 160 | 2.8 |
| ET2522-C4 | 0.7/22 | 4 | 2.3 | 180 | 2.8 |
| ET2522-C6 | 0.7/22 | 6 | 2.3 | 180 | 2.8 |
| ET2522-G4 | 0.7/22 | 4 | 2.3 | 230 | 2.8 |
| ET2522-G6 | 0.7/22 | 6 | 2.3 | 230 | 2.8 |
| ET2522-M6 | 0.7/22 | 6 | 2.3 | 280 | 2.8 |
| ET2522-O6 | 0.7/22 | 6 | 2.3 | 300 | 2.8 |

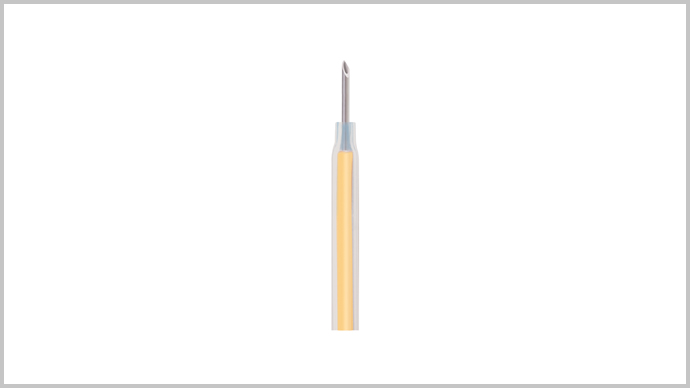

| ET2622-B6 | 0.9/20 | 6 | 2.3 | 160 | 2.8 |
| ET2622-C6 | 0.9/20 | 6 | 2.3 | 180 | 2.8 |
| ET2622-G6 | 0.9/20 | 6 | 2.3 | 230 | 2.8 |
