Injection Needles PRO Series

Description

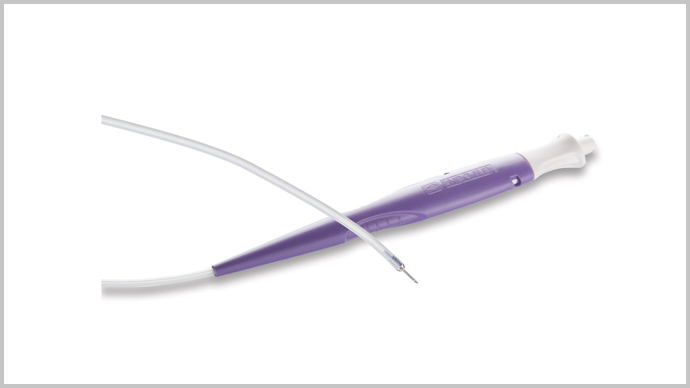

  • distal stainless steel needle, plastic tube

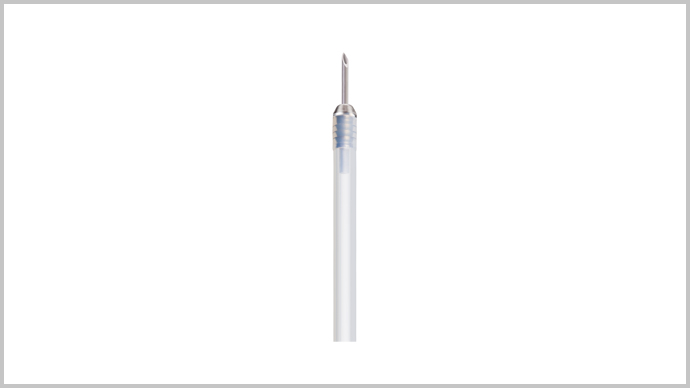

  • conical distal metal head
  • different needle lengths, diameters and working lengths
  • various tube diameters for working channels from 2.0 mm

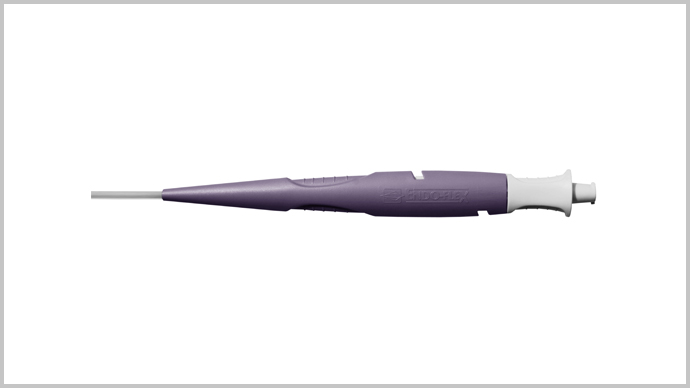

  • handle with locking mechanism to secure the needle

Product Images and Videos

Customer Service
Any Questions about the product? +49 281 94400-0 vertrieb (at) endo-flex.de

More Information

Injection Needle PRO-Series

Metal tip protection; needle lock mechanism (one hand)

Catalogue No. Needle Diameter (mm / Gauge) Needle Length (mm) Sheath Outer Diameter (mm) Working Length (cm) Min. Accessory Channel (mm)
NET2422-C4 0.5/25 4 2.3 180 2.8
NET2422-G4 0.5/25 4 2.3 230 2.8
NET2422-G6 0.5/25 6 2.3 230 2.8
NET2518-C4 0.5/25 4 1.8 180 2.0
NET2522-B4 0.7/22 4 2.3 160 2.8
NET2522-B6 0.7/22 6 2.3 160 2.8
NET2522-C4 0.7/22 4 2.3 180 2.8
NET2522-C5 0.7/22 5 2.3 180 2.8
NET2522-C6 0.7/22 6 2.3 180 2.8
NET2522-G4 0.7/22 4 2.3 230 2.8
NET2522-G5 0.7/22 5 2.3 230 2.8
NET2522-G6 0.7/22 6 2.3 230 2.8
NET2622-B6 1.0/19 6 2.3 160 2.8
NET2622-C4 1.0/19 4 2.3 180 2.8
NET2622-C6 1.0/19 6 2.3 180 2.8
NET2622-G4 1.0/19 4 2.3 230 2.8
NET2622-G5 1.0/19 5 2.3 230 2.8
NET2622-G6 1.0/19 6 2.3 230 2.8
