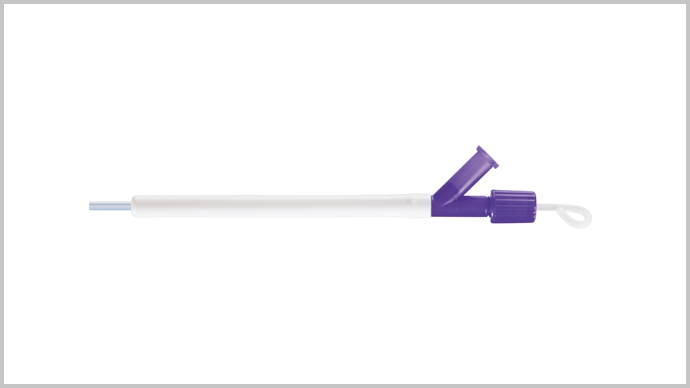

ERCP-Catheters

Description

The ENDO-FLEX portfolio includes numerous ERCP catheter lengths and variants.

  • colored ring markings
  • different tip shapes
  • can be used with guide wire (partly with equipped stylet)

Product Images and Videos

Customer Service
Any Questions about the product? +49 281 94400-0 vertrieb (at) endo-flex.de

More Information

With colored markers; compatible with guide wire .035“

Catalogue No.. Tip Shape Catheter Outer Diameter (mm) Working Length (cm) Min. Accessory Channel (mm)
E4318-GW Standard 1.8 200 2.0

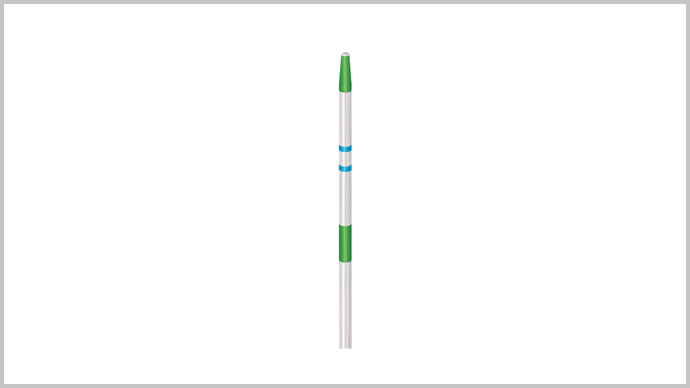

E4418-GW Tapered 1.8 200 2.0

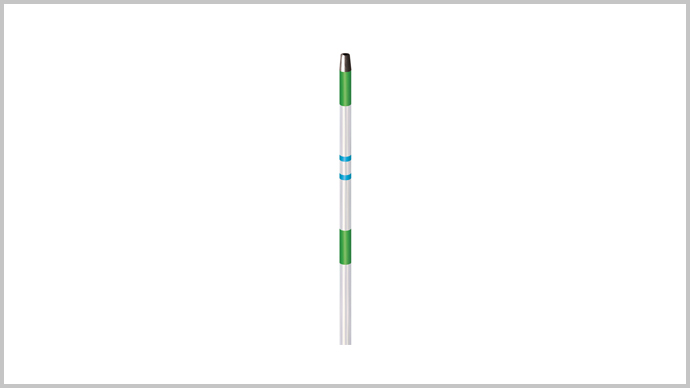

E4518-GW Conical Metal 1.8 200 2.0

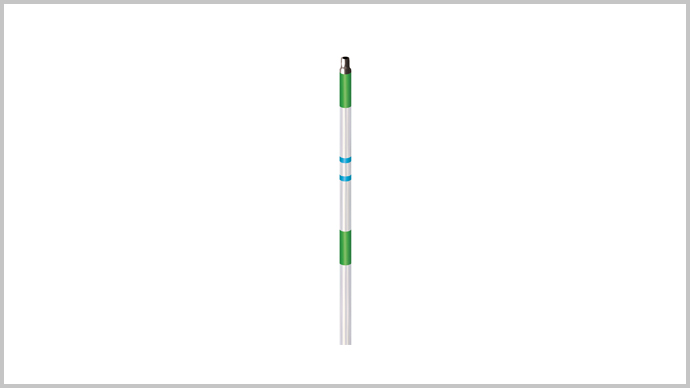

E4618-GW Tapered Metal 1.8 200 2.0

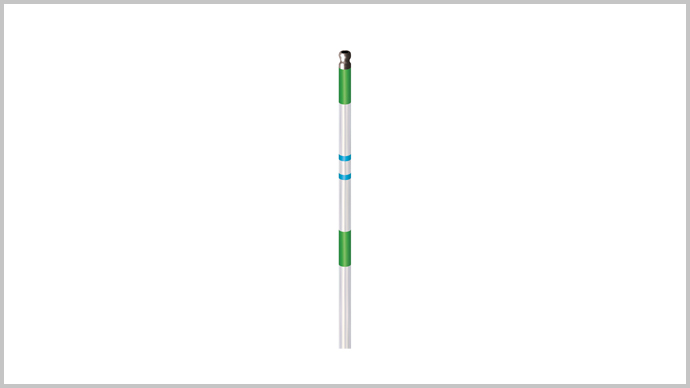

E4818-GW Hour Glass Metal 1.8 200 2.0



Compatible with guide wire .035”

Catalogue No.. Tip Shape Catheter Outer Diameter (mm) Working Length (cm) Min. Accessory Channel (mm)

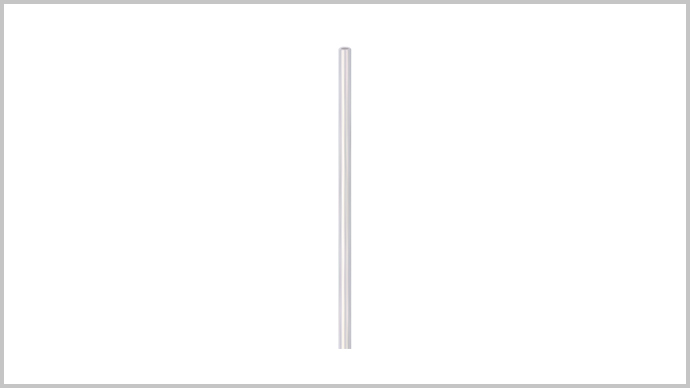

E43162FD35 Standard 1.65 200 2.0



With colored markers, compatible with guide wire .035“

Catalogue No.. Tip Shape Catheter Outer Diameter (mm) Working Length (cm) Min. Accessory Channel (mm)
E4318-GW-250 Standard 1.8 250 2.0
E4318-GW-280 Standard 1.8 280 2.0

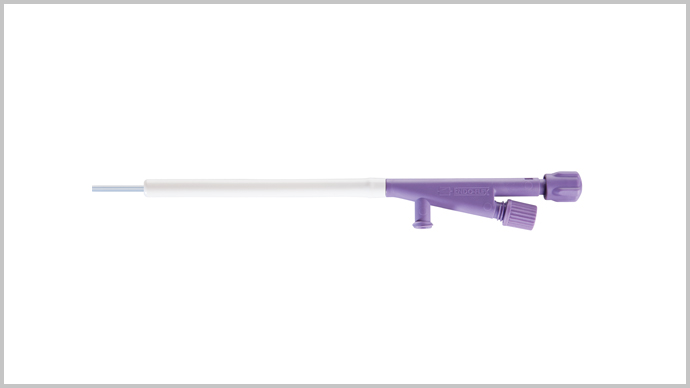

Contrast medium injection while guide wire is inserted; with colored markers, three access ports, compatible with guide wire .035”

Catalogue No. Tip Shape Catheter Outer Diameter Prox/ Dist (mm) Working Length (cm) Min. Accessory Channel (mm)
E4422-18FD Tapered 2.45 / 1.8 200 2.8
E4422-18FD-280 Tapered 2.45 / 1.8 280 2.8
E4522-18FD Conical Metal 2.45 / 1.8 200 2.8
E4622-18FD-230 Tapered Metal

2.45 / 1.8

230 2.8

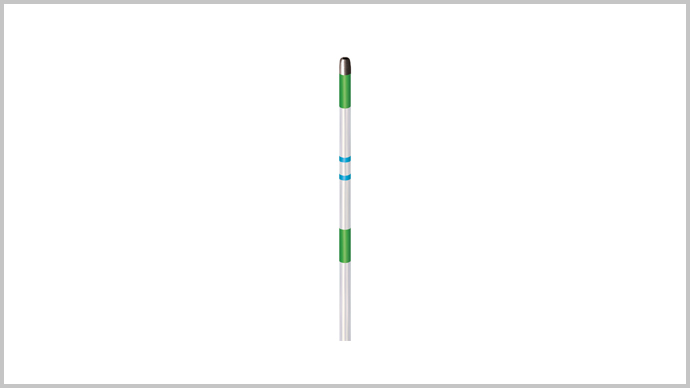

E4722-18FD Round Metal 2.45 / 1.8 200 2.8
E4822-18FD Hour Glass Metal 2.45 / 1.8 200 2.8

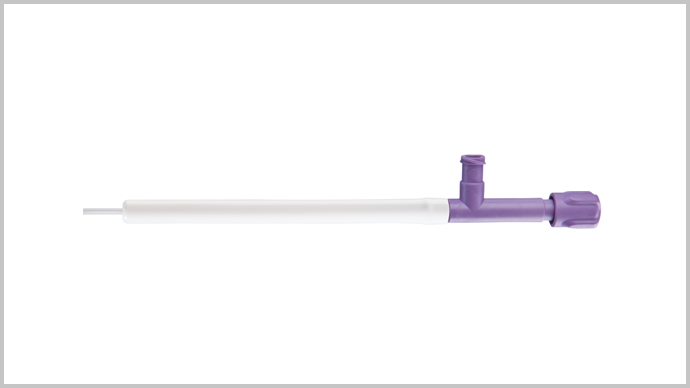

With colored markers, compatible with guide wire .035”

Catalogue No. Tip Shape Catheter Outer Diameter (mm) Working Length (cm) Min. Accessory Channel (mm)
E4318 Standard 1.8 200 2.0
E4418 Verjüngt 1.8 200 2.0

Instructions for Use - ERCP Catheters SU

File size: 997 KB
Type: PDF

Leaflet ERCP Catheters - Single Use

File size: 299 KB
Type: PDF
